Around the world people are innovating through open source technologies and hacker spaces. It has never been easier to make your ideas real. Factory for all is an attempt to bridge this new wave of innovation with the manufacturing muscle of China.

Price Charts

All prices are in US dollars. To calculate the price for a circuit board to be manufactured: choose a size envelope on the left-hand column. Your circuit board must fit within the size envelope. Then on the top row choose the quantity you'd like to purchase. Now look at the chart and see what the prices.

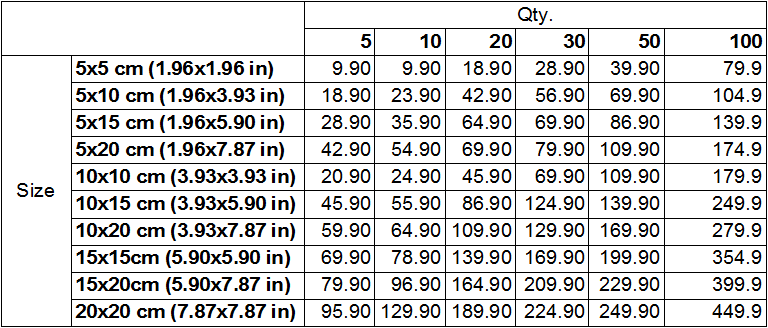

Prices for  1 and 2 Layer Circuit Boards

Unnamed QQ Screenshot20140215034415.png

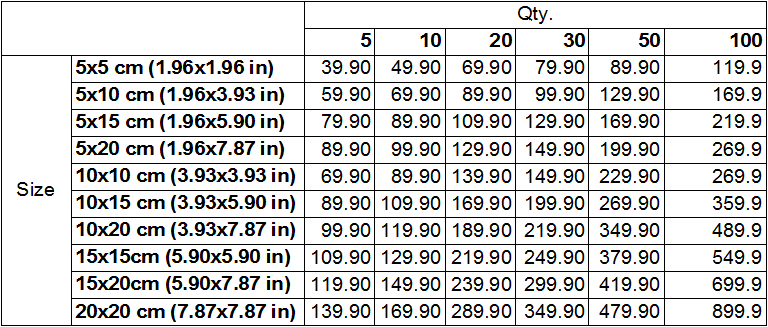

Prices for 4 Layer Circuit Boards

Unnamed QQ Screenshot20140215034152.png

Add on Services

All prices are in US dollars

Please note that four layer circuit boards are not available with a 0.6 mm thickness.

Unnamed QQ Screenshot20130806022714.png

If you use Eagle CAD, you can download DRU file to verify your design before order.

DRU for 2-layer board
DRU for 4-layer board
If you use Eagle CAD, you can generate your Gerber file through following link:
Gerber Generater 2-layer board
Gerber Generater 4-layer board


Anatomy of a Circuit Board

Unnamed QQ Screenshot20130717131114.png

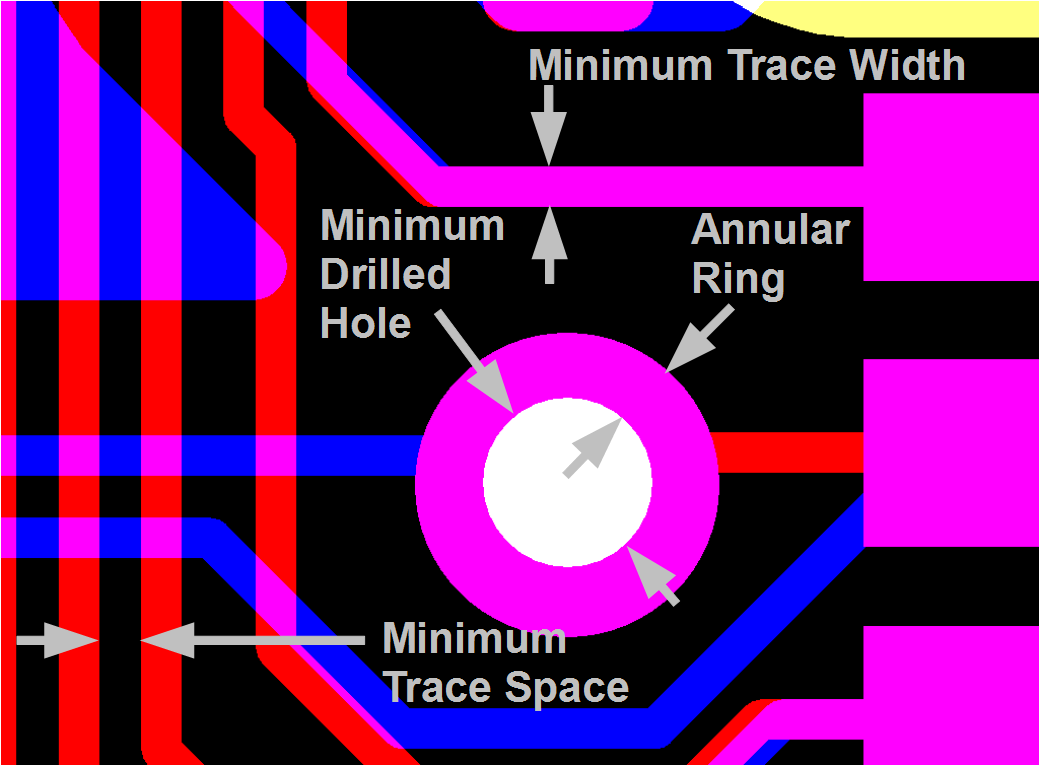

The Names

Unnamed QQ Screenshot20130717122621.png

The Rules

- no title specified

Item

Specs



Unit: mm

Unit: mil



Available Board Thickness

0.6, 0.6, 1.0

23.6, 31.5, 39




1.2, 1.6, 2.0

47, 62, 79



Thickness tolerance

(t>=1.0)±10%

(t>=39.4)±10%



Thickness tolerance

(t<1.0)±10%

(t<39.4)±10%



Insulation Layer Thickness

0.075 – 5.00

2.95 – 196.85



Minimum trace width

0.1524

6



Minimum trace/vias/pads space

0.1524

6



Minimum silkscreen width

0.1524

6



Minimum silkscreen text size

0.8128

32



Out Layer Copper Thickness

>0.03

>1.18



Inner Layer Copper Thickness Min./Max.

0.01 – 0.018

0.39 – 0.71



Drilling Hole (Mechanical) Min./Max.

0.3 – 6.35

12 – 250



Finished hole (Mechanical) Min./Max.

0.8 – 6.35

31 – 250



Diameter Tolerance (Mechanical)

±0.2

±7.87



SMT min Solder Masker Width

0.1

3.94



Min Solder Mask Clearance

0.13

5.12



Aspect Ratio

8:1



Solder Mask Type

Photosensitive ink
